A conceptual proposal for the PREFAB 20/20 International Ideas Competition. Program is an ultra-compact 400 SF residence for two adults. The proposal was required to utilize prefabrication techniques and to be sited within an urban setting.

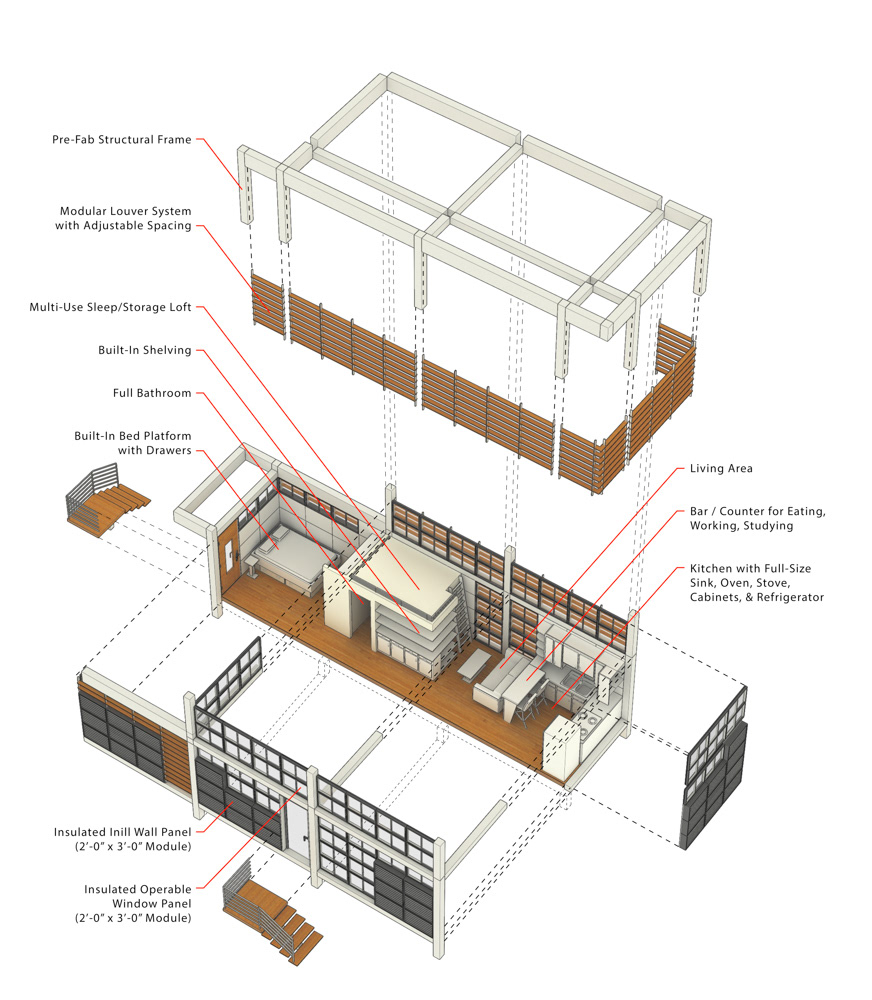

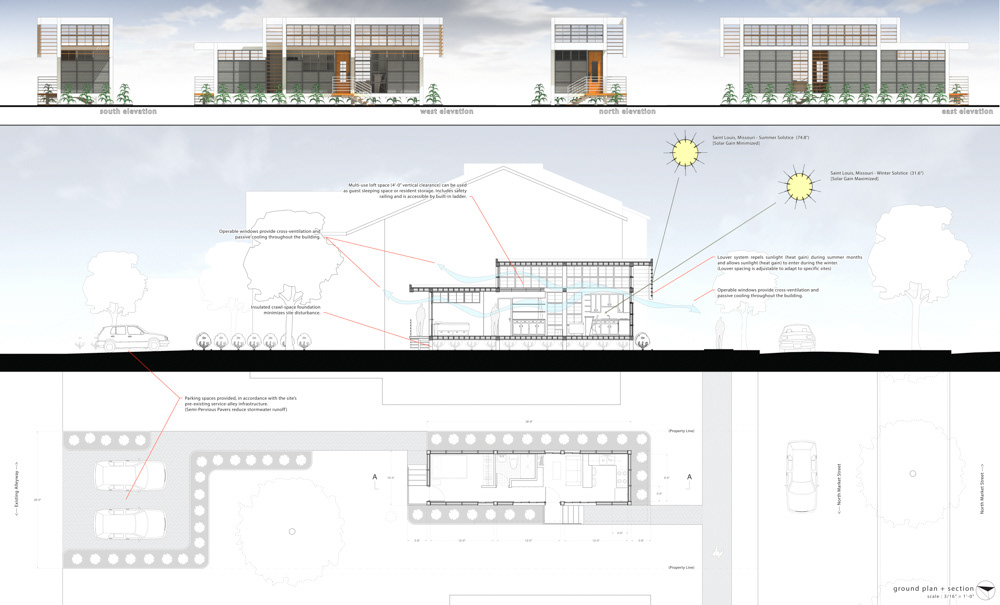

Based upon a 2’-0” x 3’-0” insulated panel module installed within a 12’-0” x 9’-0” structural frame, the system is adaptable to the specific requirements of various urban settings. Design references typical row house footprint & proportion, though eliminates party walls, bringing more pedestrians, light, and fresh air into the site.
Based upon a 2’-0” x 3’-0” insulated panel module installed within a 12’-0” x 9’-0” structural frame, the system is adaptable to the specific requirements of various urban settings. Design references typical row house footprint & proportion, though eliminates party walls, bringing more pedestrians, light, and fresh air into the site.
